Drive from the compacted glacial till of Queen Anne to the filled shorelines of South Lake Union and you’ve crossed three distinct foundation challenges in under two miles. Seattle’s geology doesn’t read textbooks — it reads like a patchwork of Vashon till, Esperance sand, and urban fill layered over a city built on seven hills. In our lab, we’ve seen the same mid-rise project need a completely different raft/mat foundation design just two blocks apart. When bearing capacity varies that sharply, isolated footings become a gamble. A stiffened mat foundation bridges the weak spots, distributing structural loads across the entire footprint and reducing differential settlement. On sites near the Duwamish Waterway where recent alluvium runs deep, we often pair the raft design with a CPT test to map soft zones without disturbing the sample, giving the structural engineer a continuous profile of tip resistance and sleeve friction before finalizing reinforcement layout. The IBC and ASCE 7 demand this level of care — and frankly, so does the soil beneath Seattle.
A mat foundation in Seattle isn’t just a slab — it’s a structural diaphragm designed to ride out a magnitude 7.0 crustal earthquake while floating on glacial till, loose sand, and urban fill.
Methodology and scope
Seattle sits at an elevation ranging from sea level to roughly 520 feet, with the last major crustal event — the Nisqually earthquake — shaking the city at magnitude 6.8 back in 2001. That event rewrote how we approach raft/mat foundation design across the Puget Sound basin. A mat foundation isn’t just a thick slab; it’s a rigid diaphragm that ties columns and shear walls together so the whole structure moves as one unit during seismic loading. In our work, we model the modulus of subgrade reaction from field data — plate load tests, SPT blow counts per ASTM D1586, and lab consolidation curves — rather than relying on textbook assumptions. For projects in the liquefaction-prone soils of the Duwamish industrial corridor, we integrate
liquefaction assessment early in the design phase to determine whether ground improvement is needed before the mat is poured. The interplay between soil stiffness, groundwater at just 4 to 8 feet below grade in many neighborhoods, and Seattle’s Seismic Design Category D means every reinforcement bar matters. We’ve also learned that combining the mat design with
stone columns can reduce total and differential settlement in compressible fill, a technique we’ve validated on several mixed-use projects near the waterfront.
Local ground factors
The most expensive mistake we see in Seattle? Assuming the glacial till found on one corner of the lot extends across the entire site. A contractor will drill two borings, hit hard till at 10 feet, and green-light a mat foundation on a uniform bearing stratum that doesn’t actually exist. Then excavation reveals a pocket of peat or loose urban fill — and suddenly the raft/mat foundation design needs re-engineering, the rebar cages are on hold, and the project loses three weeks. We’ve excavated enough test pits in South Lake Union to know that historical creek beds were filled with sawdust and rubble a century ago, and those pockets don’t show up on geologic hazard maps. A proper subsurface investigation using SPT borings at close spacing, combined with laboratory classification per ASTM D2487, reveals these inconsistencies before concrete is poured. The IBC requires a geotechnical report for a reason — and in Seattle, that reason is often buried under 15 feet of undocumented fill.
Frequently asked questions
When does a raft/mat foundation make more sense than isolated footings in Seattle?
A mat foundation becomes the better choice when the allowable bearing capacity is low — below about 2,500 psf — or when differential settlement between columns would exceed half an inch. In Seattle neighborhoods built on fill, like parts of the International District or South Lake Union, soil conditions can change sharply across a single lot. A stiffened mat bridges those variations, and it also works well where groundwater is high and individual footing excavations would require extensive dewatering.
What does a typical raft/mat foundation design project cost in the Seattle area?
For a complete raft/mat foundation design package — including the subsurface investigation, lab testing, analysis, and the structural design deliverables — costs in the Seattle metro area generally range from US$1,080 to US$4,640 depending on the building footprint, number of borings required, and complexity of the seismic analysis. A single-story residential mat on good till sits at the lower end; a mid-rise on fill with liquefaction assessment and ground improvement coordination runs toward the upper end.
How does Seattle’s seismic risk affect mat foundation reinforcement detailing?

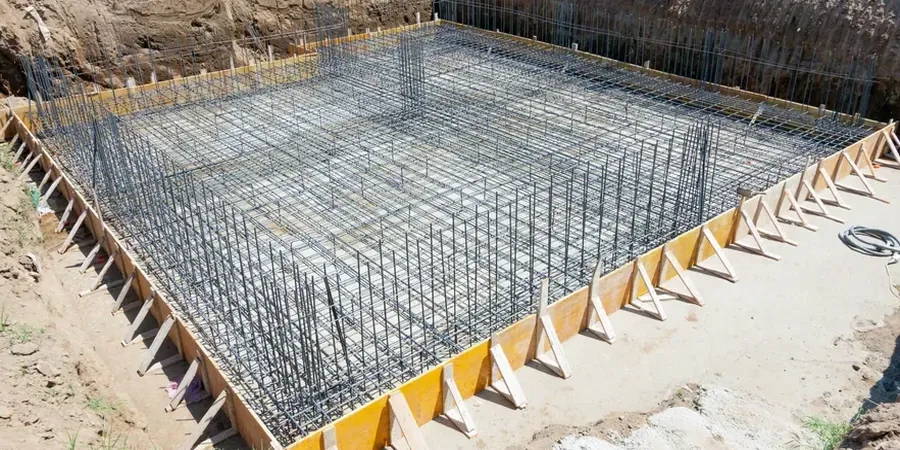

Seattle falls into Seismic Design Category D under ASCE 7-22, which means the mat must handle significant lateral demands in addition to gravity loads. We typically see top and bottom mats of reinforcement with closer bar spacing than a non-seismic design would call for, plus additional steel at column interfaces and shear wall boundaries. The geotechnical report provides the site-specific seismic site class — often Class D or E in Seattle — and that classification directly drives the base shear and detailing requirements in the structural design.
